1000w Upgrade Kit

$429.95
$429.95
Sold out
Shipping calculated at checkout.
A simple upgrade anyone handy can do!
Greatly improve the torque and top speed of your Trotter T-1 or LH with
this simple kit. The updated programming also makes mounting and balance even easier!
Includes:
1x Upgraded Motherboard (or programming update via Bluetooth)

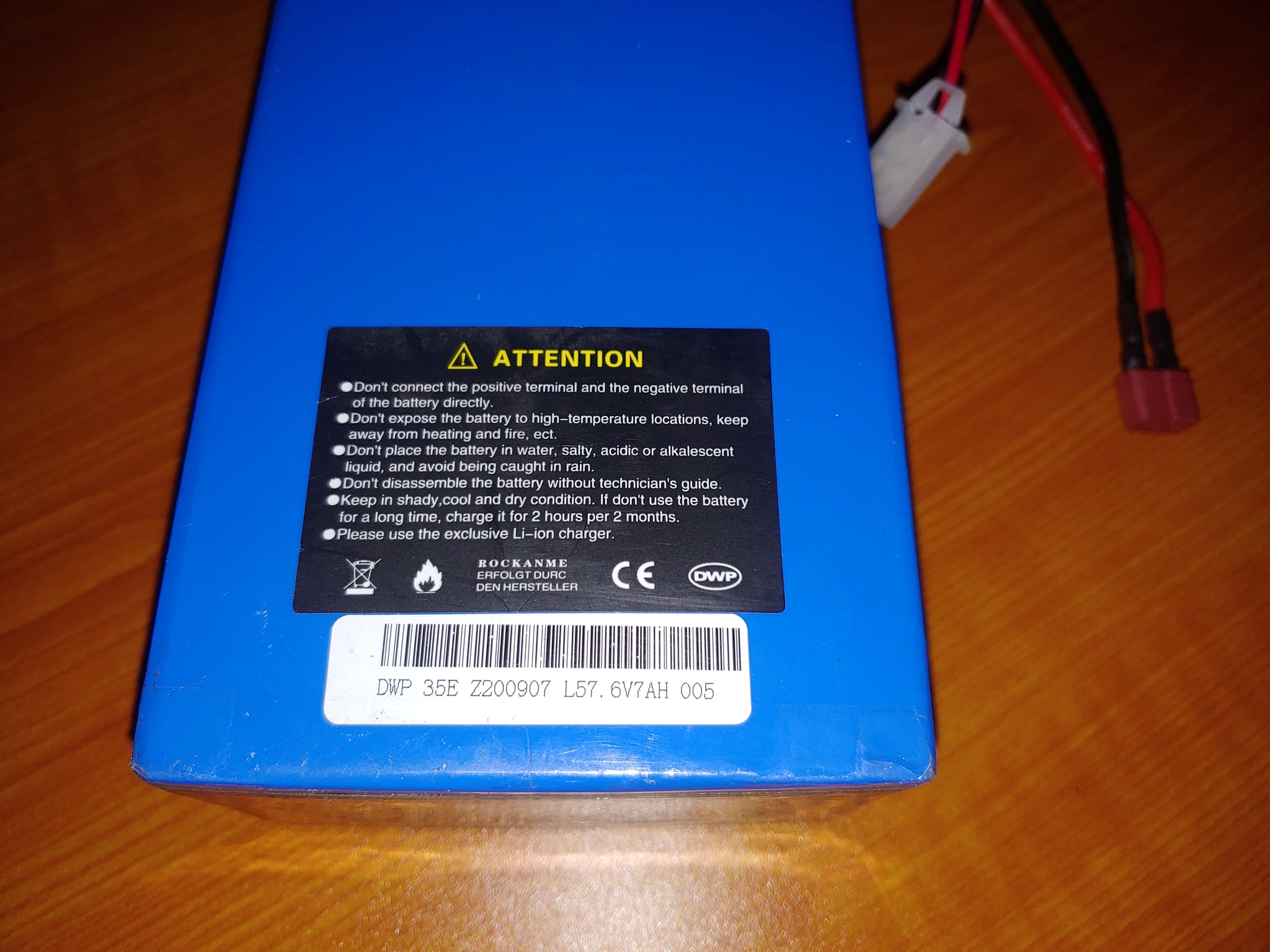

1x Upgraded 60v Battery

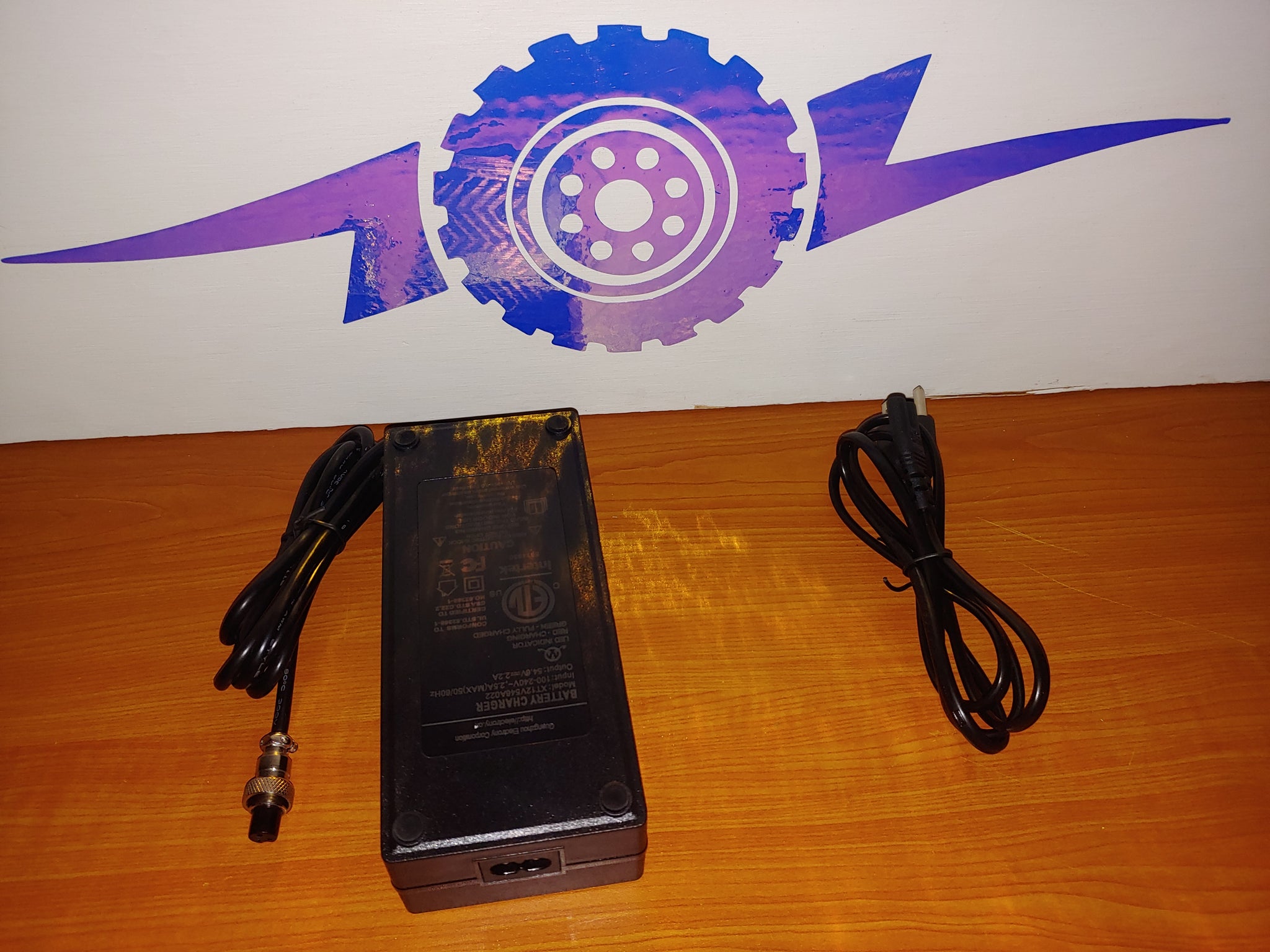

1x 60v Charger

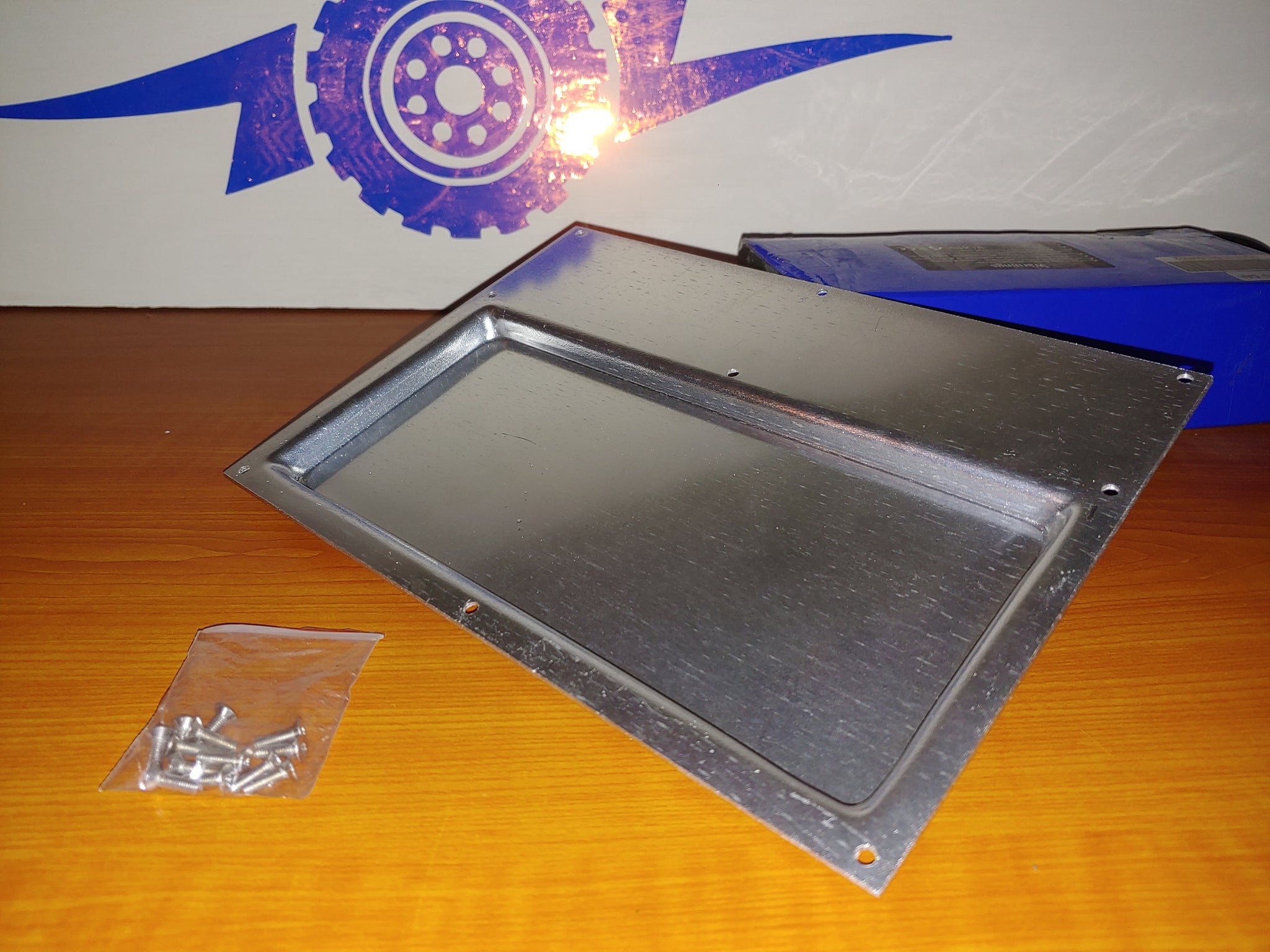

1x Upgraded Bottom Cover Plate (optional)
12x M3-.50 Replacement Screws
READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING!! IF NOT DONE PROPERLY, THERE IS POTENTIAL FOR DAMAGE TO THE BOARD/COMPONENTS, SEVERE INJURY OR POSSIBLE DEATH! BY ATTEMPTING THIS REPAIR, YOU ASSUME ALL RESPONSIBILITY FOR ANY AND ALL DAMAGES!
IF YOU ARE NOT COMFORTABLE OR CONFIDENT WITH THIS PROCEDURE, CONTACT INNOVATIVE ELECTRONICS, OR A LOCAL PERSONAL ELECTRIC VEHICLE (PEV) SHOP TO HANDLE THE INSTALLATION. INNOVATIVE ELECTRONICS AND SMILO MOTORS SHALL BEAR NO RESPONSIBILITY OR LIABILITY FOR DAMAGE, INJURY OR DEATH DUE TO IMPROPER HANDLING OR INSTALLATION.

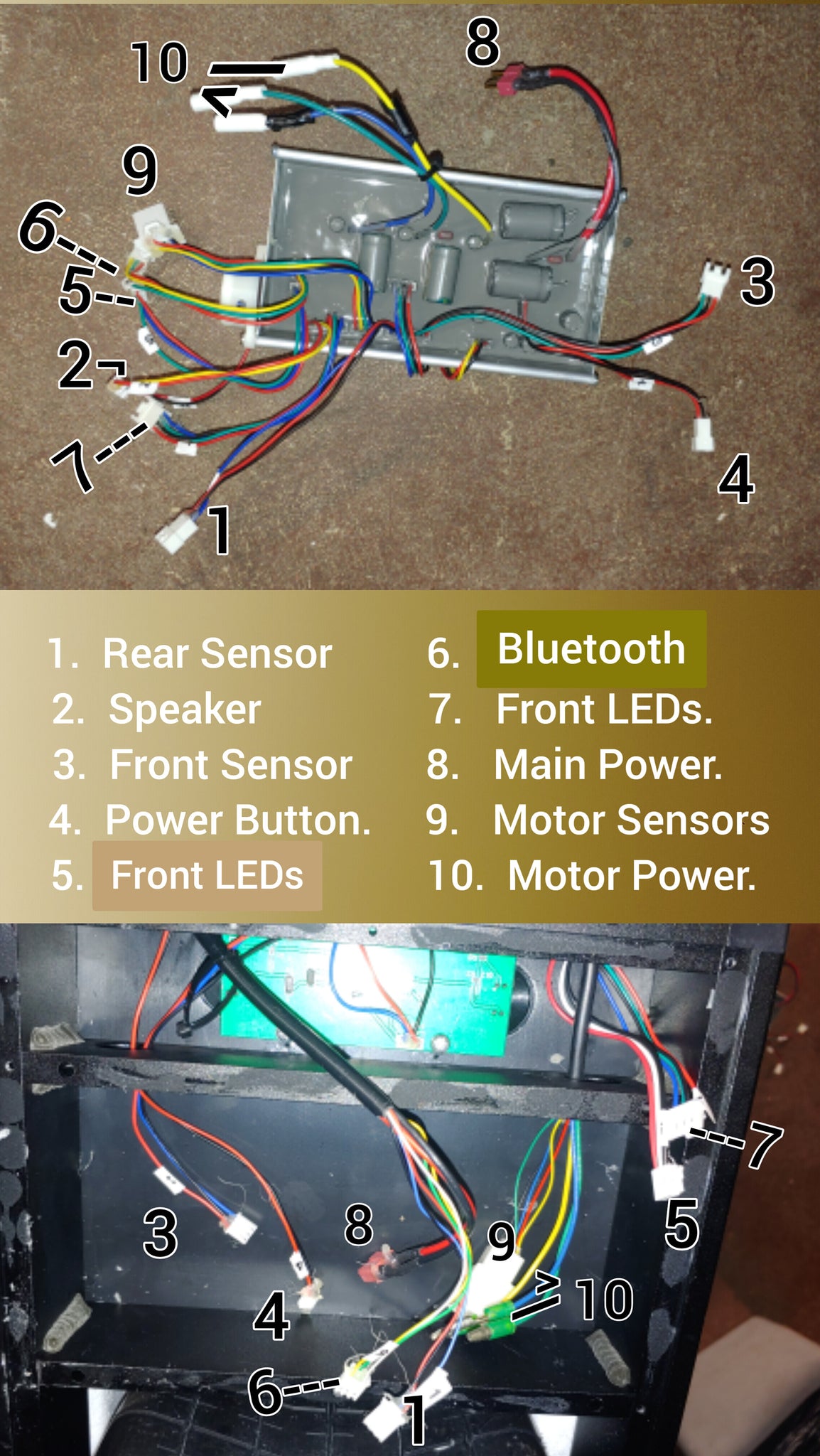

1. Remove the FRONT bottom cover plate of the board.  (carefully, the motherboard is attached)

2. On the motherboard, disconnect the main power clip from the battery (T-connector with only 2 large wires - one black, one red).

3. With a metal screwdriver with PLASTIC OR RUBBER handle, touch both prongs on the T-Connector attached to the MOTHERBOARD. This will discharge the capacitors, resulting in a spark. This is normal, and protects you and the components from a shock.

DO NOT TOUCH the T-connector clip from the battery.

3. Remove 4 nuts holding motherboard to cover plate, and remove the motherboard.

4. Replace with upgraded motherboard and reconnect mounts and clips.

5. Replace bottom cover plate. (removable thread locker recommended)

6. Remove REAR bottom cover plate.

7. Disconnect 2 clips from battery

8. Gently remove battery and replace with upgraded 60v battery

9. Reconnect 2 clips to new battery

10. Replace bottom cover plate. If you have the T-1 4.4ah model, you will also need the upgraded bottom cover plate. The LH model already has it! (removable thread locker recommended)

6. Ride up to 17+mph and enjoy the added torque!
